Stainless steel series
YG6X material
High brightness/wear resistance
Steel cast iron nonferrous metal alloy materials and non-alloy materials

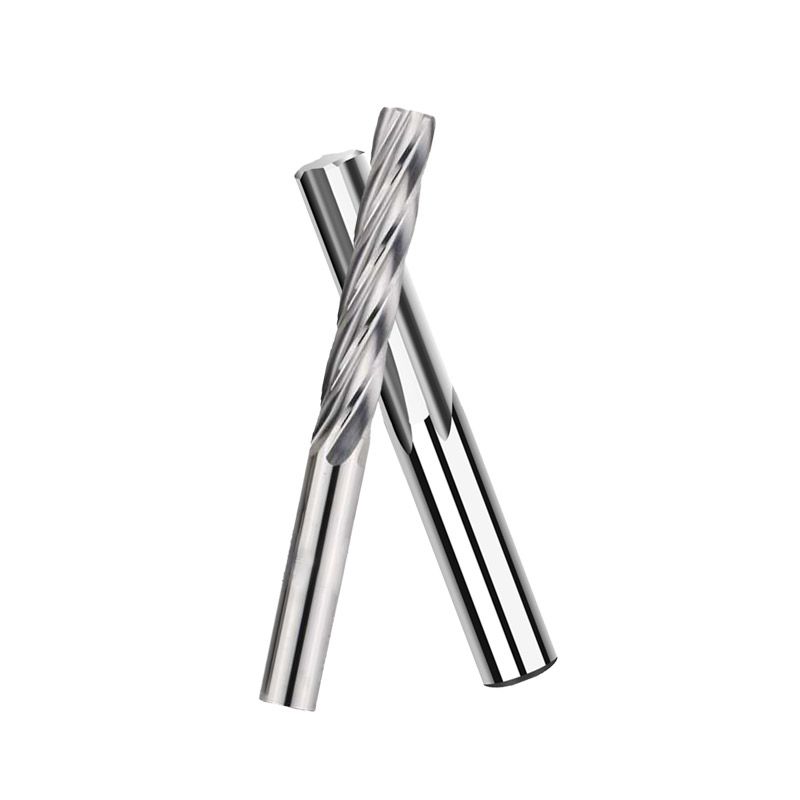

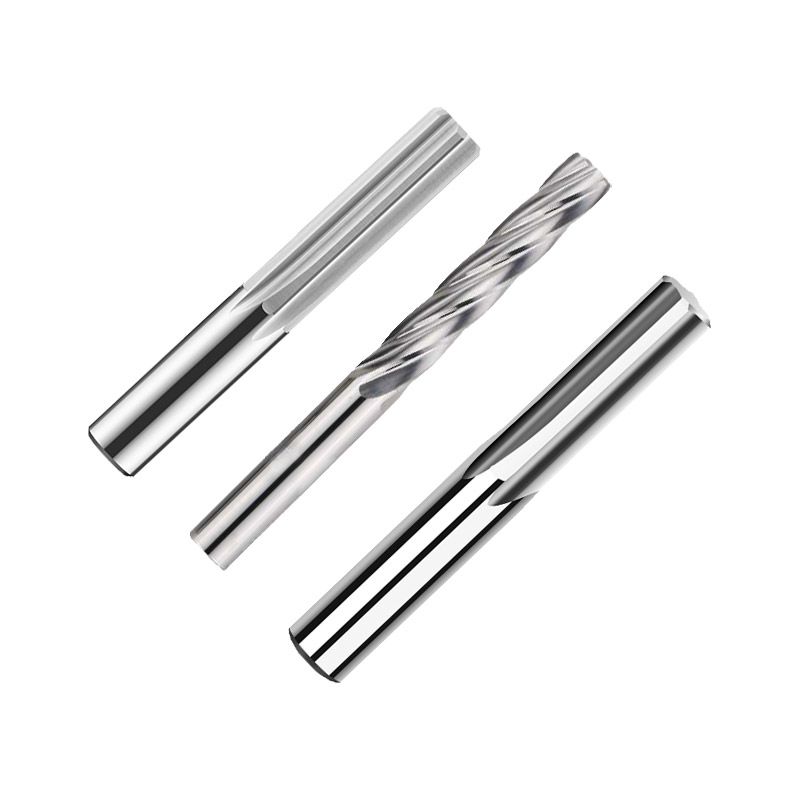

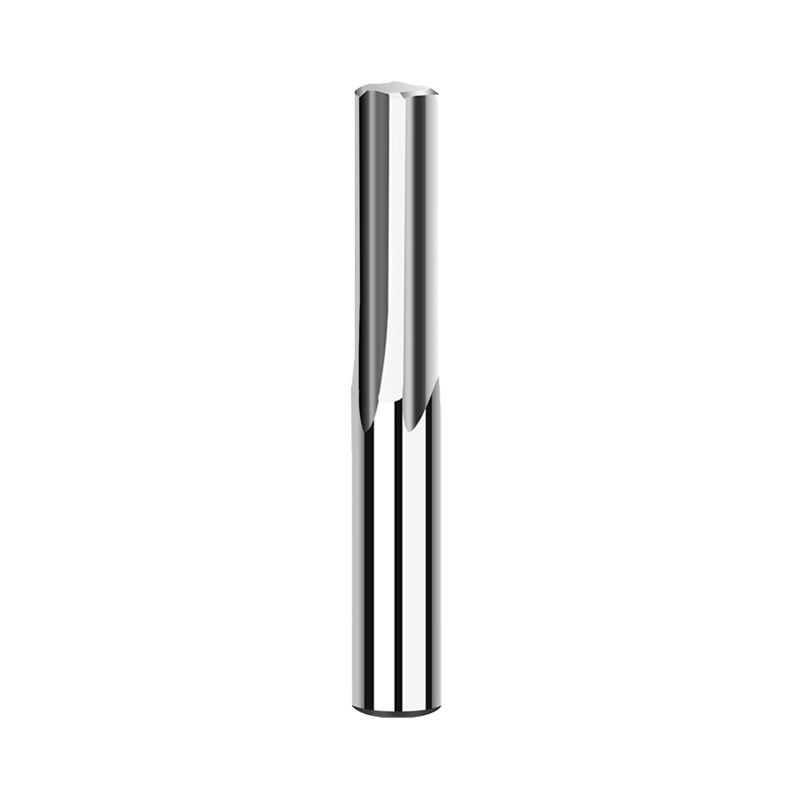

This integral tungsten steel reamer is directly sold by the manufacturer, supports non-standard customization, adopts tungsten steel material, and has the core advantages of "smooth chip removal, precise seismic resistance, and sharp cutting edge". At the technical level, the exquisite technology improves the seismic ability of the reamer, the cutting edge is CNC precision machining, and the multi-angle treatment extends the service life and optimizes the chip removal performance. Round handle chamfer design to ensure tight clamping without slipping, full sharpening edge to achieve sharp cutting, reduce the number of tool changes. Products through the strict inspection process, from R & D to the factory layer control quality. A wide range of applications, can process steel parts, cast iron, non-ferrous metals, alloy materials, etc., suitable for CNC machining centers, engraving machines and other high-speed equipment to meet diverse processing needs.
Specification range | Blade length | Overall length | Tolerance accuracy |
1.11-1.29*25-50L | 25 | 50 | ±0.001 |
6.01-6.39*30-60L | 30 | 60 | ±0.001 |
11.11-11.29*40-75L | 40 | 75 | ±0.001 |
1.21-1.49*25-50L | 25 | 50 | ±0.001 |
6.21-6.59*30-60L | 30 | 60 | ±0.001 |
11.21-11.49*40-75L | 40 | 75 | ±0.001 |
1.51-1.79*25-50L | 25 | 50 | ±0.001 |
6.51-6.89*30-60L | 30 | 60 | ±0.001 |
11.51-11.79*40-75L | 40 | 75 | ±0.001 |
1.81-1.99*25-50L | 25 | 50 | ±0.001 |
6.71-6.99*30-60L | 30 | 60 | ±0.001 |
11.81-11.99*40-75L | 40 | 75 | ±0.001 |
2.01-2.19*25-50L | 25 | 50 | ±0.001 |
7.01-7.49*40-75L | 40 | 75 | ±0.001 |
12.01-12.49*40-75L | 40 | 75 | ±0.001 |
2.21-2.39*25-50L | 25 | 50 | ±0.001 |
7.11-7.59*40-75L | 40 | 75 | ±0.001 |
12.21-12.49*40-75L | 40 | 75 | ±0.001 |
2.51-2.69*25-50L | 25 | 50 | ±0.001 |
7.41-7.89*40-75L | 40 | 75 | ±0.001 |
12.51-12.79*40-75L | 40 | 75 | ±0.001 |
2.81-2.99*25-50L | 25 | 50 | ±0.001 |
7.71-7.99*40-75L | 40 | 75 | ±0.001 |
12.81-12.99*40-75L | 40 | 75 | ±0.001 |
3.01-3.29*35-60L | 35 | 60 | ±0.001 |
8.01-8.49*40-75L | 40 | 75 | ±0.001 |
25 加长铰刀 | - | 100 | ±0.001 |
3.31-3.59*35-60L | 35 | 60 | ±0.001 |
8.31-8.59*40-75L | 40 | 75 | ±0.001 |
3.0-60*100L | 60 | 100 | ±0.001 |
3.61-3.89*35-60L | 35 | 60 | ±0.001 |
8.61-8.99*40-75L | 40 | 75 | ±0.001 |
4.5-60*100L | 60 | 100 | ±0.001 |
3.91-4.19*35-60L | 35 | 60 | ±0.001 |
9.01-9.49*40-75L | 40 | 75 | ±0.001 |
5.0-60*100L | 60 | 100 | ±0.001 |
4.21-4.49*35-60L | 35 | 60 | ±0.001 |
9.31-9.59*40-75L | 40 | 75 | ±0.001 |
7.5-60*100L | 60 | 100 | ±0.001 |
4.51-4.79*35-60L | 35 | 60 | ±0.001 |
9.61-9.99*40-75L | 40 | 75 | ±0.001 |
9.5-60*100L | 60 | 100 | ±0.001 |
4.81-4.99*35-60L | 35 | 60 | ±0.001 |
9.71-9.99*40-75L | 40 | 75 | ±0.001 |
11.5-60*100L | 60 | 100 | ±0.001 |
5.01-5.29*35-60L | 35 | 60 | ±0.001 |
10.01-10.49*40-75L | 40 | 75 | ±0.001 |
12.0-60*100L | 60 | 100 | ±0.001 |
5.31-5.59*35-60L | 35 | 60 | ±0.001 |
10.31-10.59*40-75L | 40 | 75 | ±0.001 |
14.0-60*100L | 60 | 100 | ±0.001 |
5.61-5.89*35-60L | 35 | 60 | ±0.001 |
10.61-10.99*40-75L | 40 | 75 | ±0.001 |
16.0-60*100L | 60 | 100 | ±0.001 |
5.91-5.99*35-60L | 35 | 60 | ±0.001 |
10.81-10.99*40-75L | 40 | 75 | ±0.001 |
20.0-60*100L | 60 | 100 | ±0.001 |
